What are Expansion Joint Profiles and why are they so important?
In industrial construction, where precision and durability are key, expansion joint profiles are indispensable components. While they may initially appear to be just lost formwork, in reality, they serve a critical function. They protect edges from damage caused by natural floor movements and prevent slab curling.
Definition and Functions of Expansion Joint Profiles
Expansion joint profiles are special elements installed at expansion joints, allowing the structure to expand and contract due to changes in temperature, humidity, or mechanical loads. They enable the building to "move" naturally without suffering damage.
Expansion joints can appear in various forms:
- Horizontal and vertical
- In floors, walls, ceilings
- On building façades
Expansion profiles are selected based on their application area, considering factors such as:
- Load-bearing capacity
- Abrasion resistance
- Chemical resistance
- Aesthetic requirements
Importance of Expansion Joints in Industrial Buildings
In industrial facilities – production halls, warehouses, logistics centers – structures are exposed to much greater loads than in residential buildings. These may include:
- Intense vibrations
- Large temperature fluctuations
- Loads from machinery and vehicles
Each of these factors affects the "movement" of the building.
Consequences of Lacking Expansion Joint Profiles
A lack of properly selected and installed expansion joints can lead to:
- Cracking of concrete floors
- Faster wear of usable surfaces
- Serious structural failures
Expansion joints compensate for these movements, ensuring durability and safety of the facility.
Types of Expansion Joints – Applications Overview
Depending on their purpose, the following types of expansion joint profiles can be distinguished:

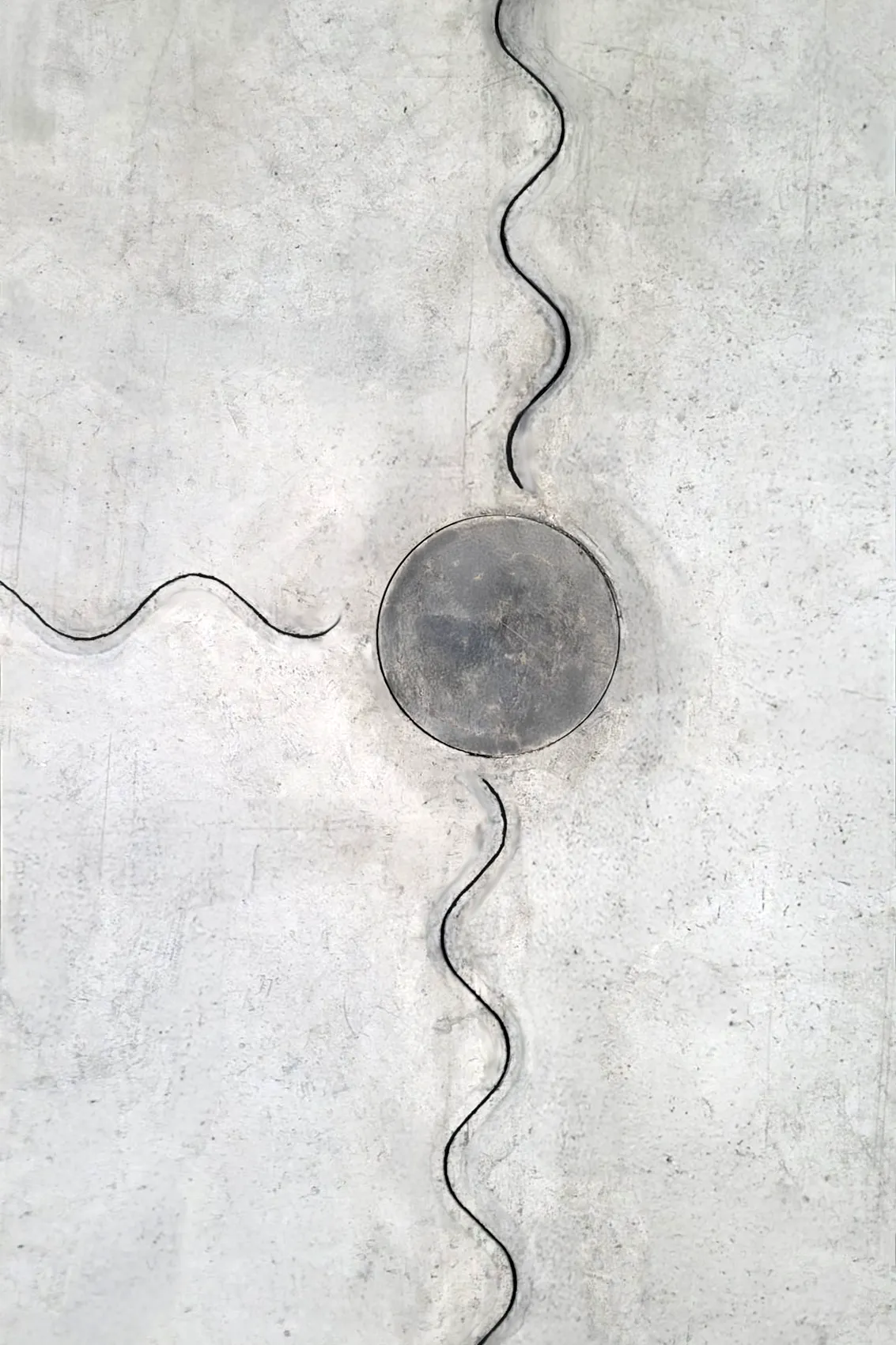

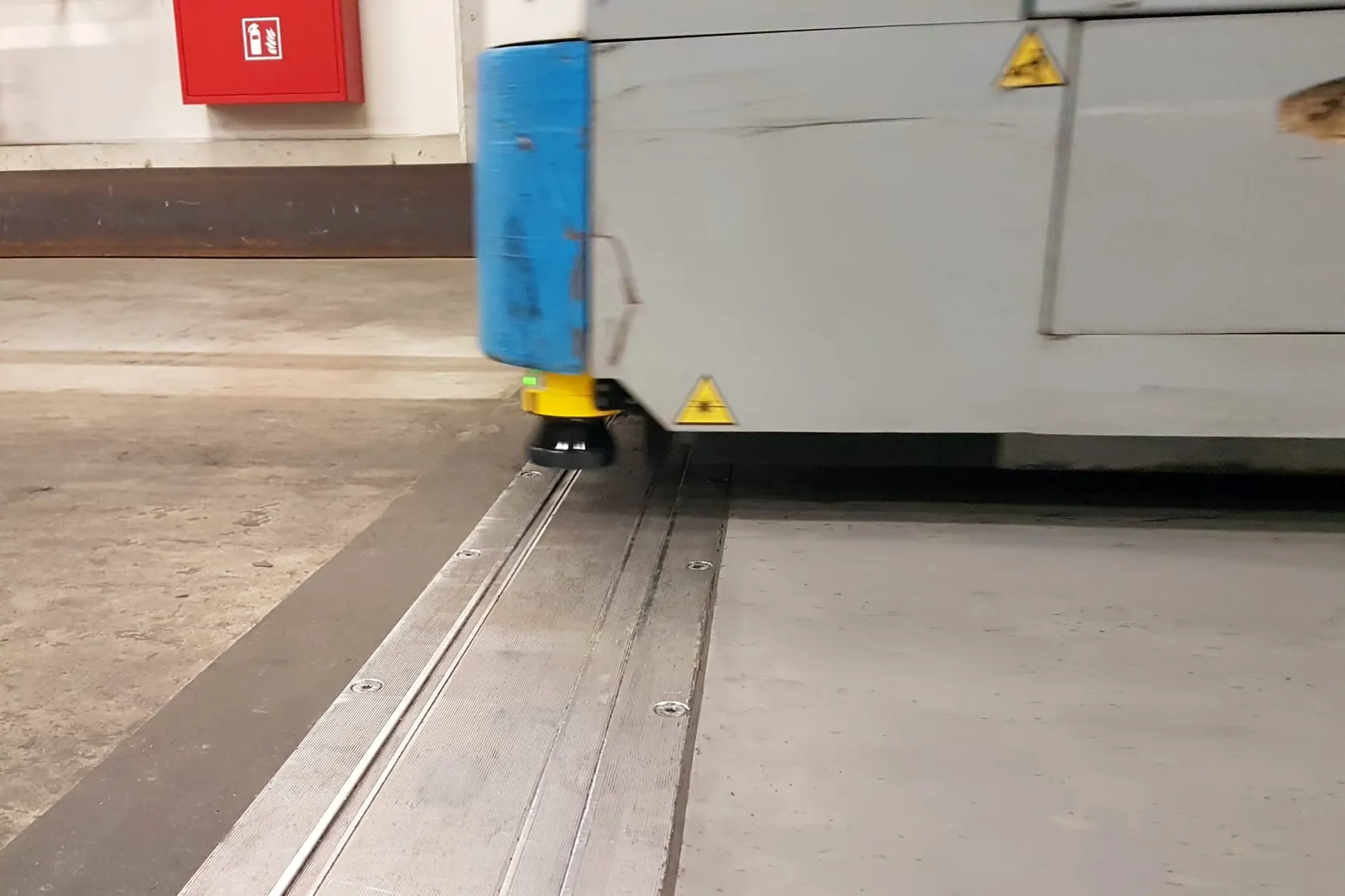

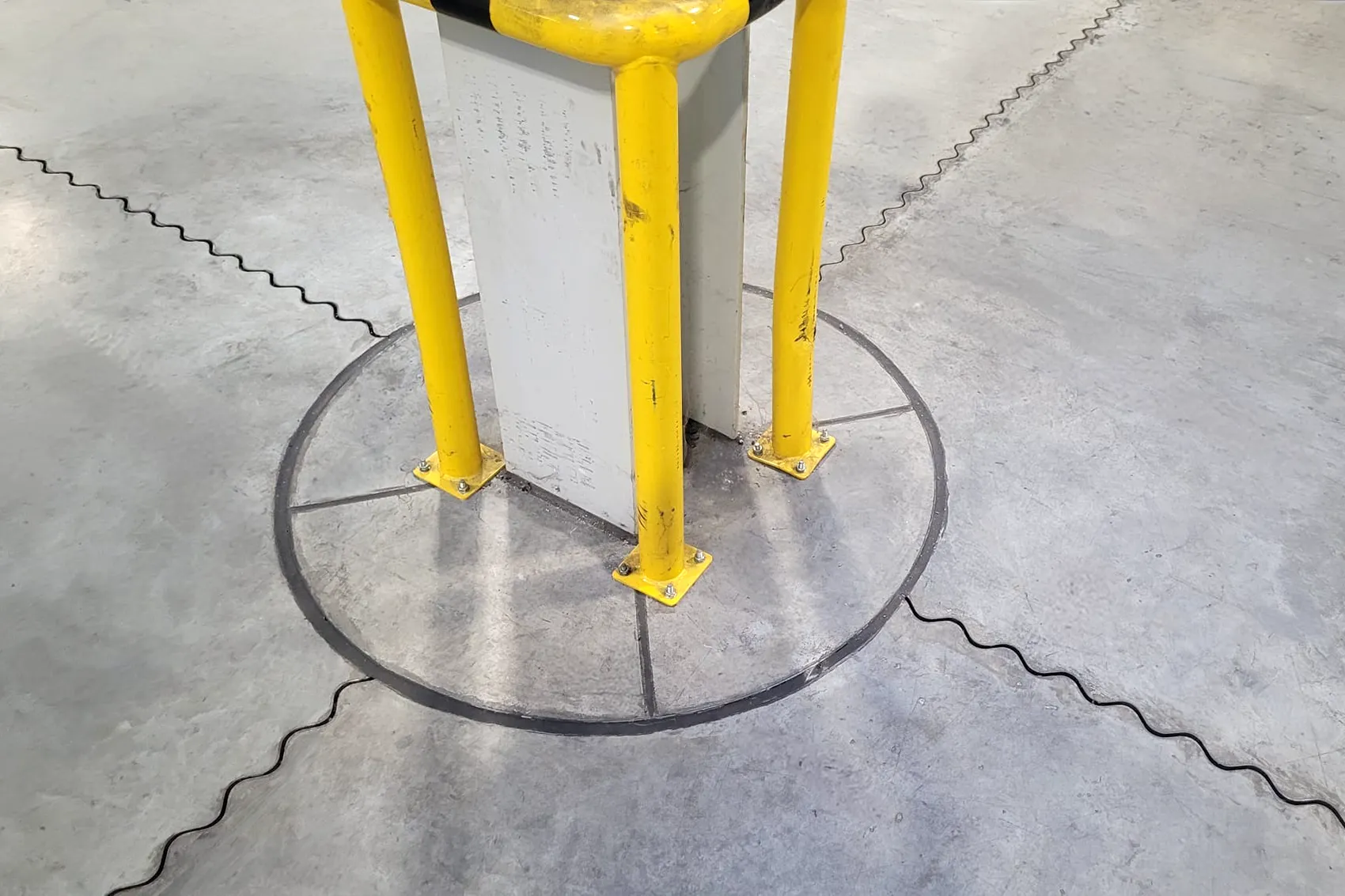

Floor Profiles
Used in concrete floors, known for resistance to heavy loads and abrasion. Ideal for production halls and warehouses.
Wall and Ceiling Profiles
Enable compensation of vertical and horizontal movements in industrial structures.
Façade Profiles
Designed for aesthetics and resistance to weather conditions. Provide thermal sealing of the building.
Fire-Resistant Profiles
Prevent the spread of fire through expansion gaps, which is crucial in industrial facilities.
Modern expansion joint profiles can also include:
- Acoustic sealing
- Waterproofing
- Fire resistance
Criteria for Selecting Expansion Joint Profiles
Choosing the right expansion profile should not be random. Key selection criteria include:
- Range of structural movement – defines technical requirements
- Type and thickness of the substrate – influences installation method
- Traffic intensity (pedestrian, vehicular, machinery) – determines durability
- Environmental conditions (chemicals, temperature, humidity) – define material requirements
- Design specifications and building codes – ensure compliance
Expert Recommendations
The selection and placement of expansion joint profiles should be consulted with an experienced designer or manufacturer of expansion systems. Professional advice guarantees optimal solutions.
Benefits of Using Expansion Joint Profiles
Expansion joints are not just a technical detail – they are a crucial structural element that ensures:
- Longevity of industrial buildings
- Safe operation of the structure
- Minimization of costly repairs
Including them in the design demonstrates engineering awareness and a commitment to quality and durability.
Conclusion
Investing in the right expansion joints means meeting technical and legal requirements, but most importantly, it minimizes the risk of costly future repairs.
That’s why it’s worth paying attention to expansion joints already at the design stage – it’s an investment that always pays off in the long run.
