DOWEL SYSTEM

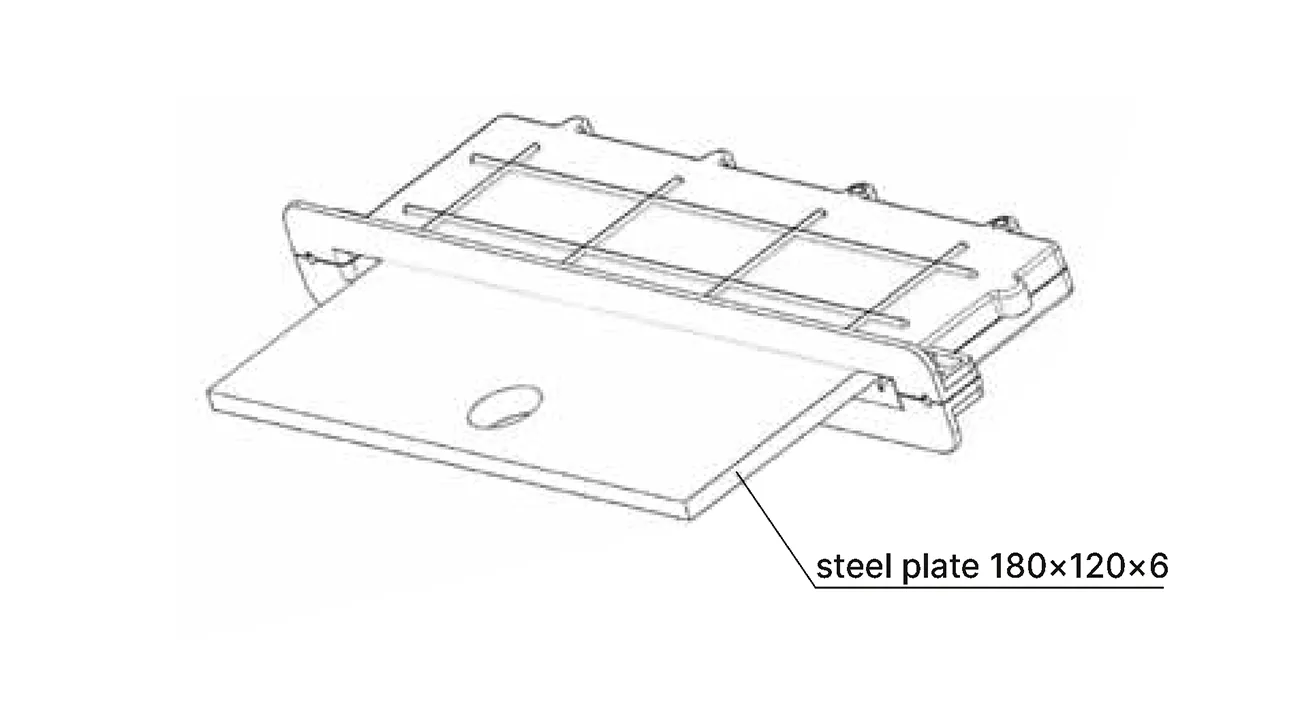

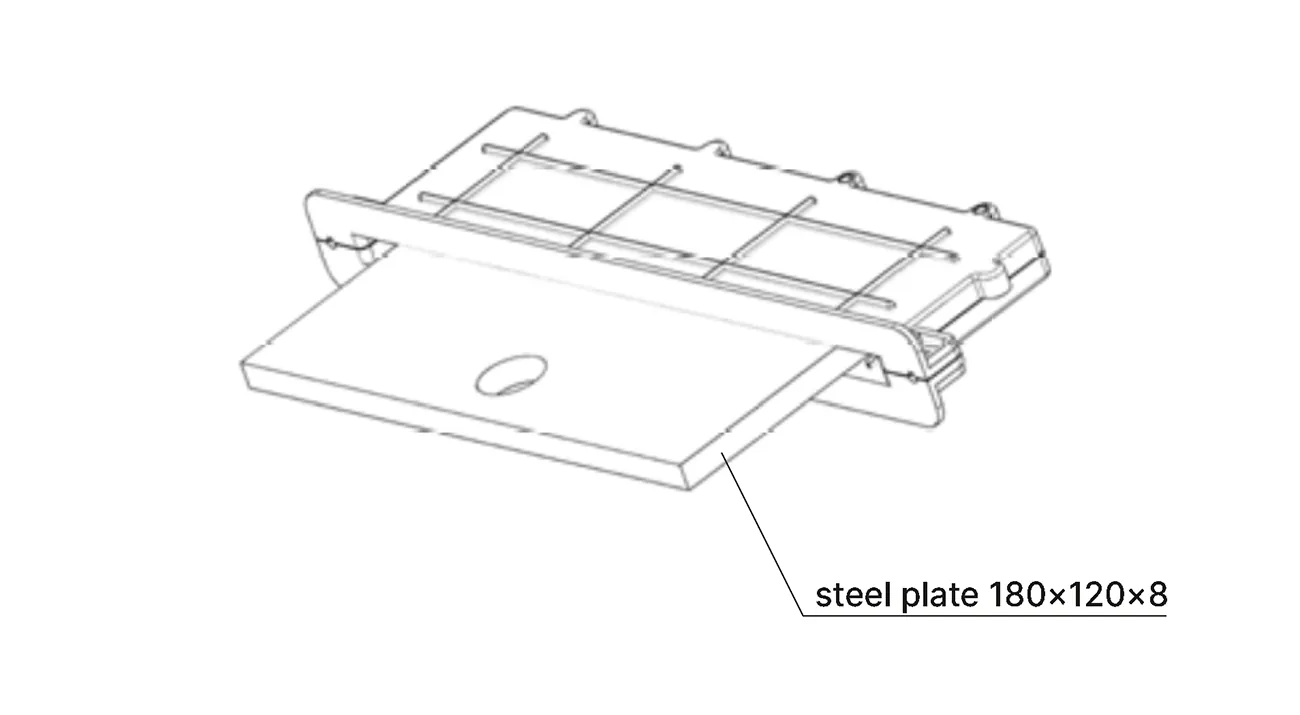

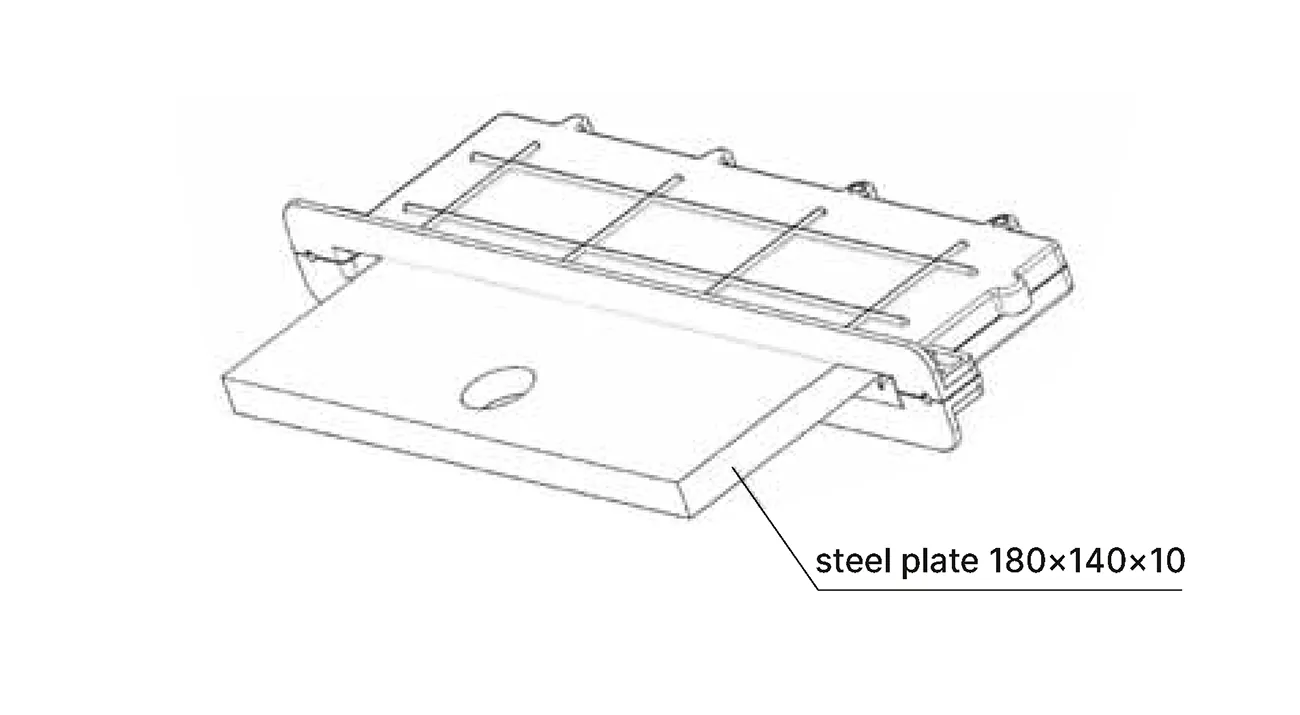

Expansion strips are mounted in concrete floor plates to compensate movements in plate sections. Concrete plates are exposed to internal and external pressures. Damage occurs mainly at the edges of plates near to connections. Connection of floor plates should compensate their mutual horizontal movements (perpendicular and parallel to the expansion joint) which are usually caused by thermal expansion and shrinkage of concrete. At the same time the connection must also block vertical movements and mutual curving of floor elements which is a consequence of traffic, heavy loads and uneven passive earth pressure. Conecto Dowel system are designed to create expansion joints for industrial. Steel armoured joints with their unique construction constitute a stay-in-place formwork and additionally secure concrete floor edges. Conecto Dowel system is a floor expansion joint solution, where an anchoring element is a steel dowel placed in a specifically designed plastic sleeve, which permits free horizontal movement (along and across expansion joints) and prevents vertical movements between expanded floor plates. Plastic elements are provided with proper reinforcements, which protect them against the deformation caused by the concrete pressure (even when the floor is thick). The standard we use 5 dowels (5D) on each 3.000 mm profile lenght. When more load capacity is needed, we can also produce profiles with 6 dowels (6D) or 7 dowels (7D).

Conecto Dowel expansion joints allow for a movement between floor plates:

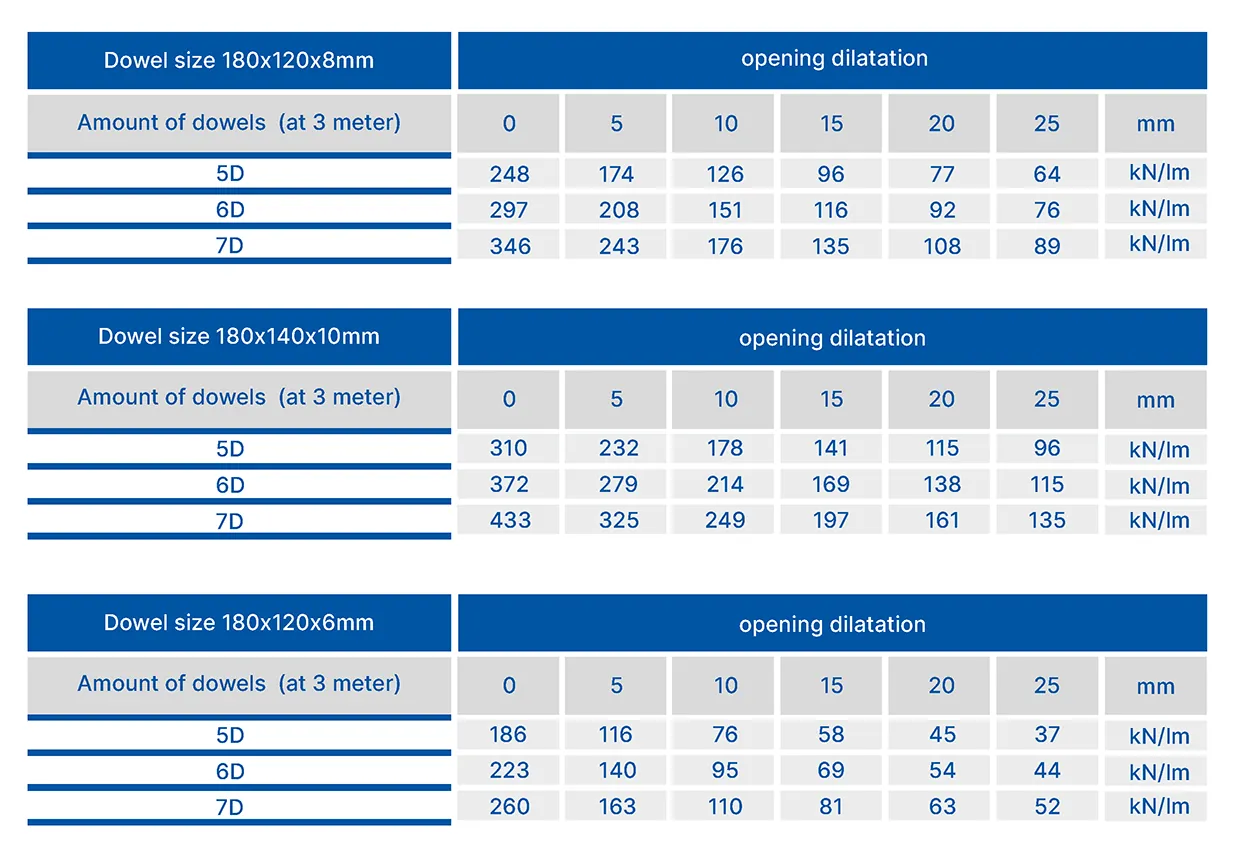

• Load capacity about expansion joints depending on amount
• of dowels in one joint [kN/lm] steel S355MC, floor concrete C25/30
