In the case of parking lots - both above-ground and multi-level - expansion joints play a key role in ensuring the durability and safety of the structure. Their task is to compensate for thermal movements and mechanical loads that constantly affect the structure of the facility. In order to fulfill their function in such a demanding environment, they must be precisely selected - not only in terms of strength, but also resistance to weather conditions and chemicals.
Parking lot - a challenging environment
The operation of parking lots involves a number of technical challenges:
- heavy traffic with varying loads,
- large temperature fluctuations - especially on outdoor levels,
- constant presence of moisture, salt, fuels, and oils,
- the need for tightness and compatibility with waterproofing layers.
In such conditions, expansion joints for parking lots must not only compensate for movement, but also ensure tightness, load resistance, and ease of maintenance.
What requirements must expansion joints for parking lots meet?
A well-chosen expansion joint system for parking spaces should:
- withstand significant dynamic loads and turning maneuvers,
- be resistant to frost, UV radiation, water, and road salt,
- be impervious to moisture, especially in ceiling layers,
- be compatible with waterproofing materials (e.g., resins, membranes),
- be resistant to chemicals.
The most commonly used types of expansion joints
Depending on the type of structure and location of the parking lot, different solutions are used:
- Surface profiles with flexible seals - ideal for compensating for movement and protecting against dirt,
- Profiles integrated with insulation - particularly important in areas exposed to rainwater and leaks,

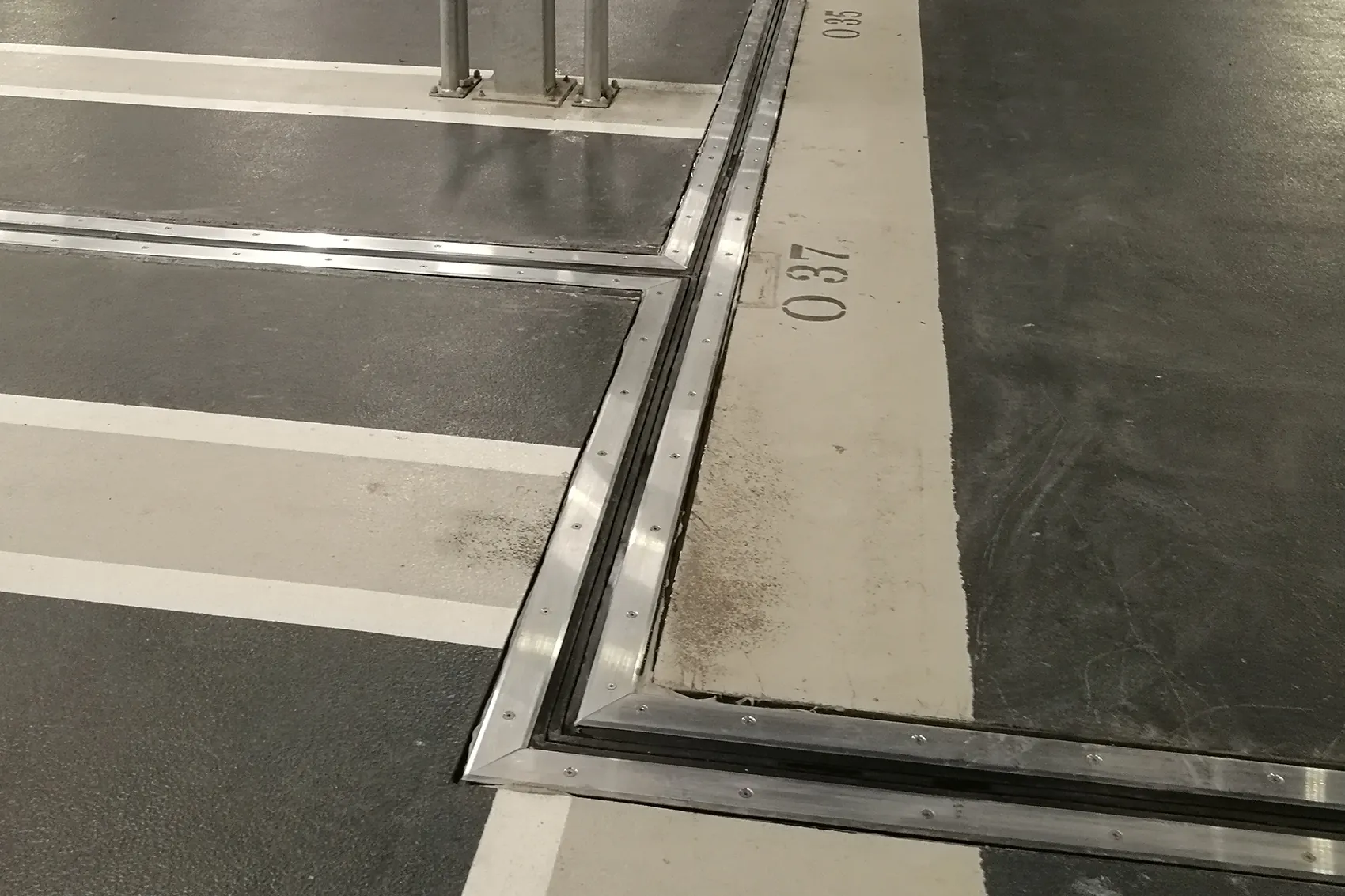

- Profiles adapted to resin floors - used in enclosed parking lots, guaranteeing aesthetics and durability.

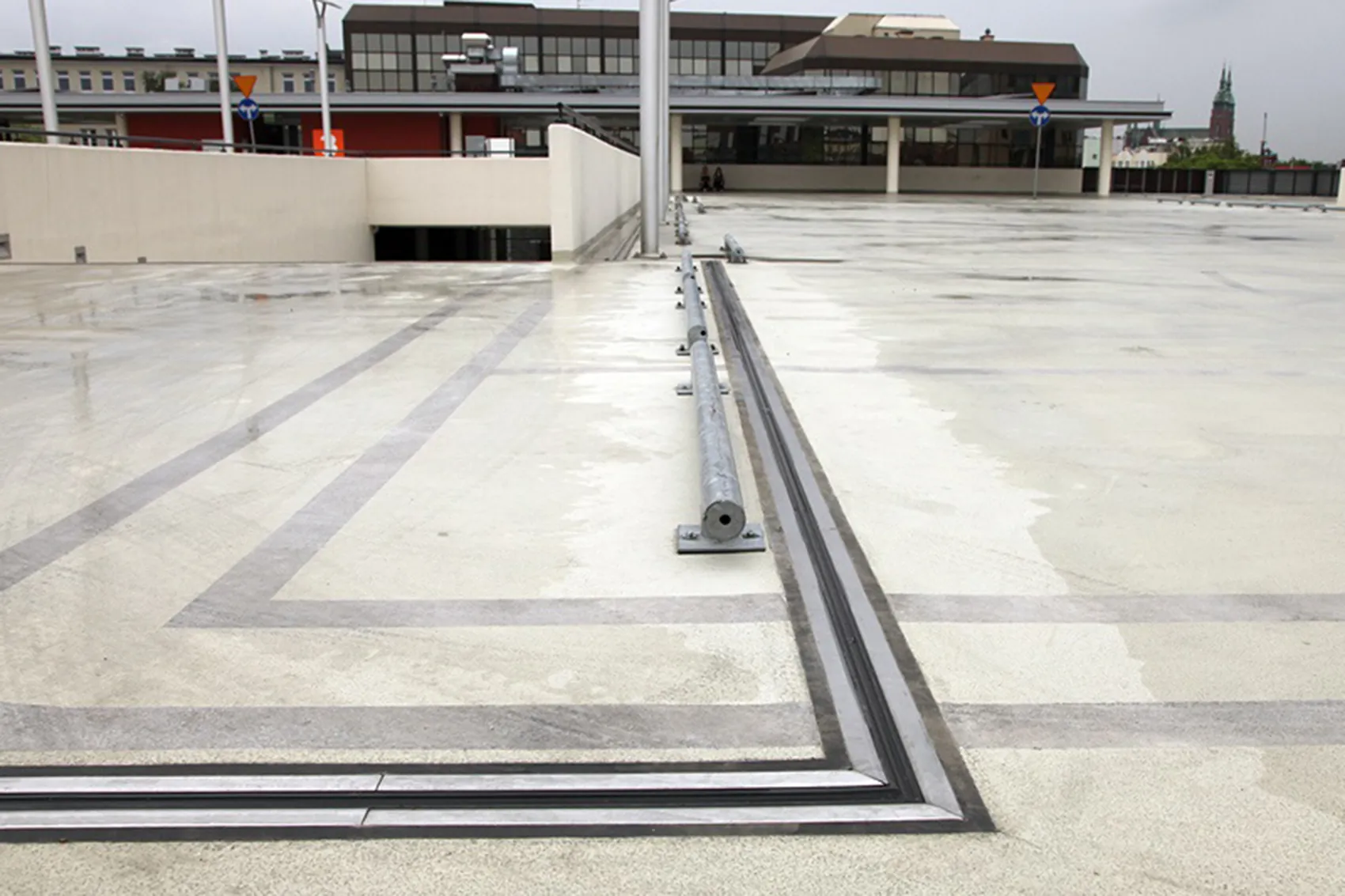

An example of an effective solution are aluminum profiles with replaceable PVC seals - combining flexibility with high mechanical resistance. In outdoor parking lots, where exposure to moisture and temperature changes is significant, steel or stainless steel expansion joints, adapted to extreme operating conditions, are more suitable.
What to consider when choosing a profile?
When designing an expansion joint system, it is worth considering:
- anticipated structural displacement (horizontal and vertical),
- type of surface (concrete, resin, asphalt),
- tightness and resistance to chemical agents,
- possibility of replacing elements without dismantling the entire profile,
- certificates and technical approvals.
Summary - durability starts with the details
Although expansion joint profiles for parking lots represent only a fraction of the total investment value, their impact on the functionality and service life of the facility is disproportionately large. Their quality determines whether the structure will remain tight, safe, and resistant to damage for many years.
By investing in proven expansion joint solutions at the design stage, investors minimize the risk of failure, leaks, and costly repairs. In the case of parking lots, it is worth focusing on quality without compromise.
Damian Foterek
